5in Dodge Suspension Lift Kit | Coil Spacers | Radius Drops (13-


Item Unavailable

Product Details

Rough Country Logo

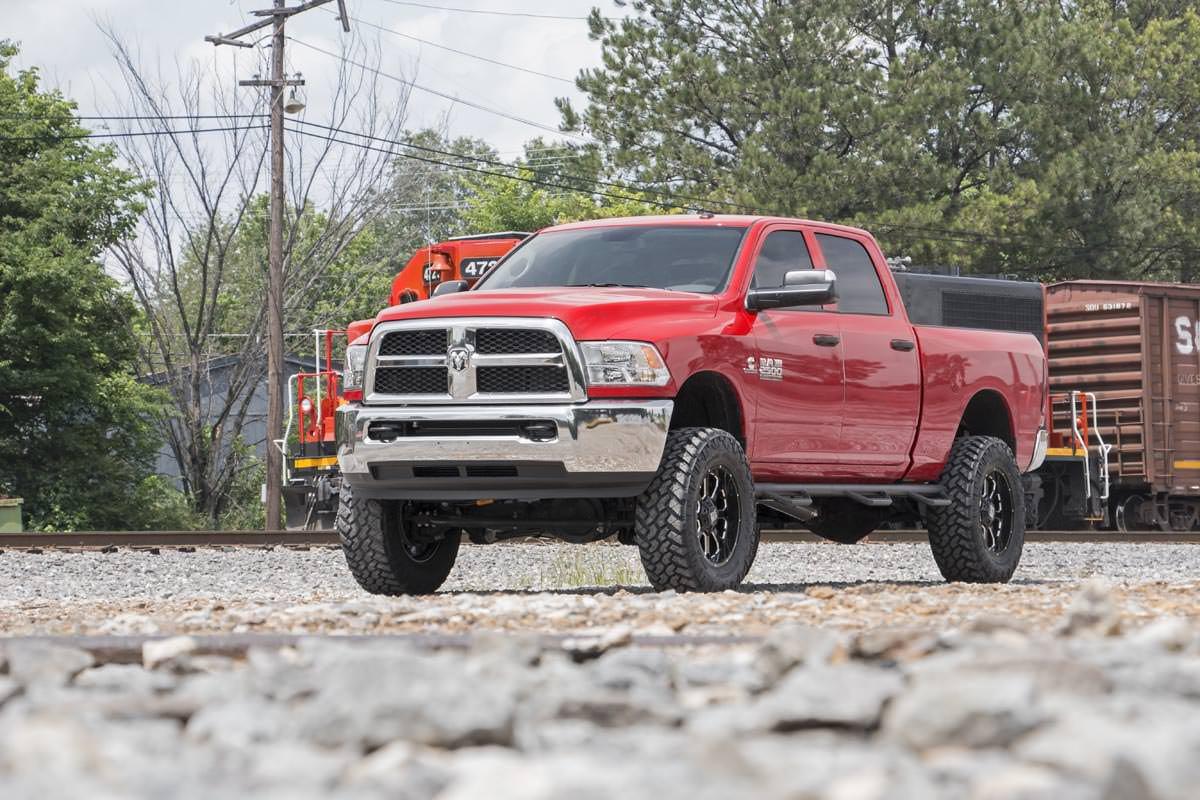

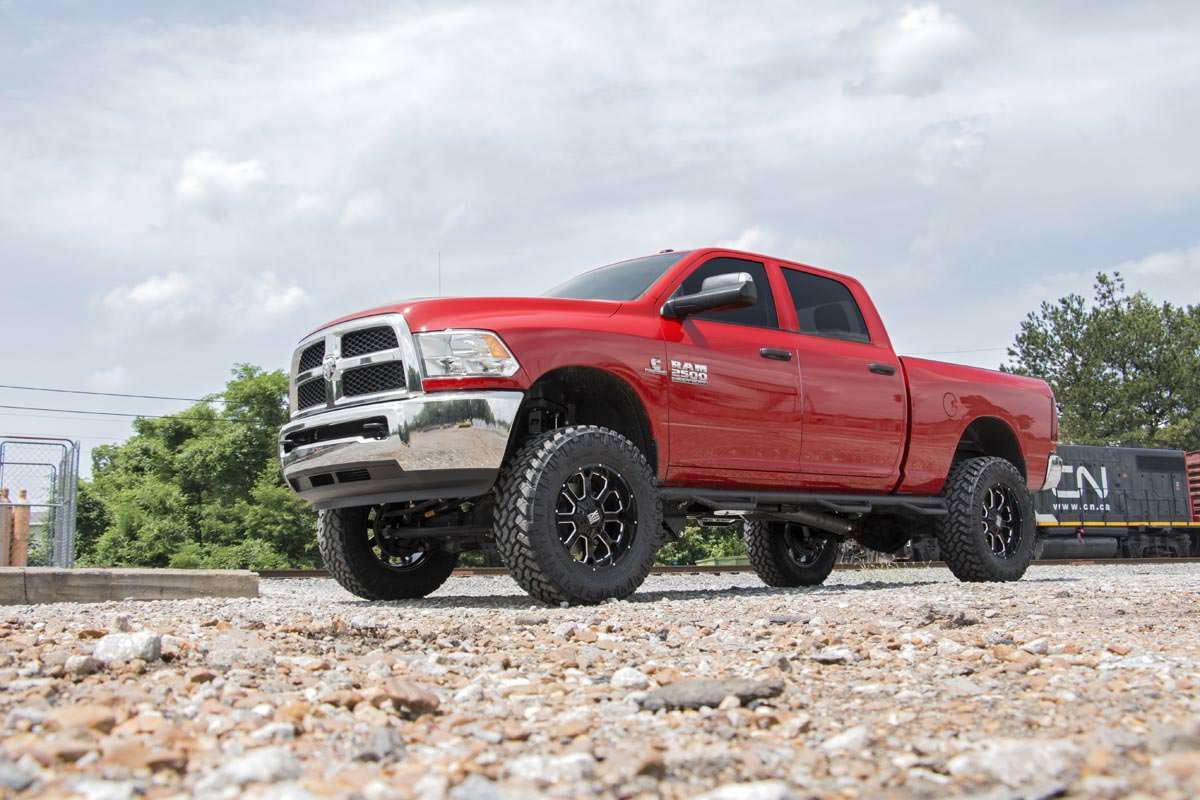

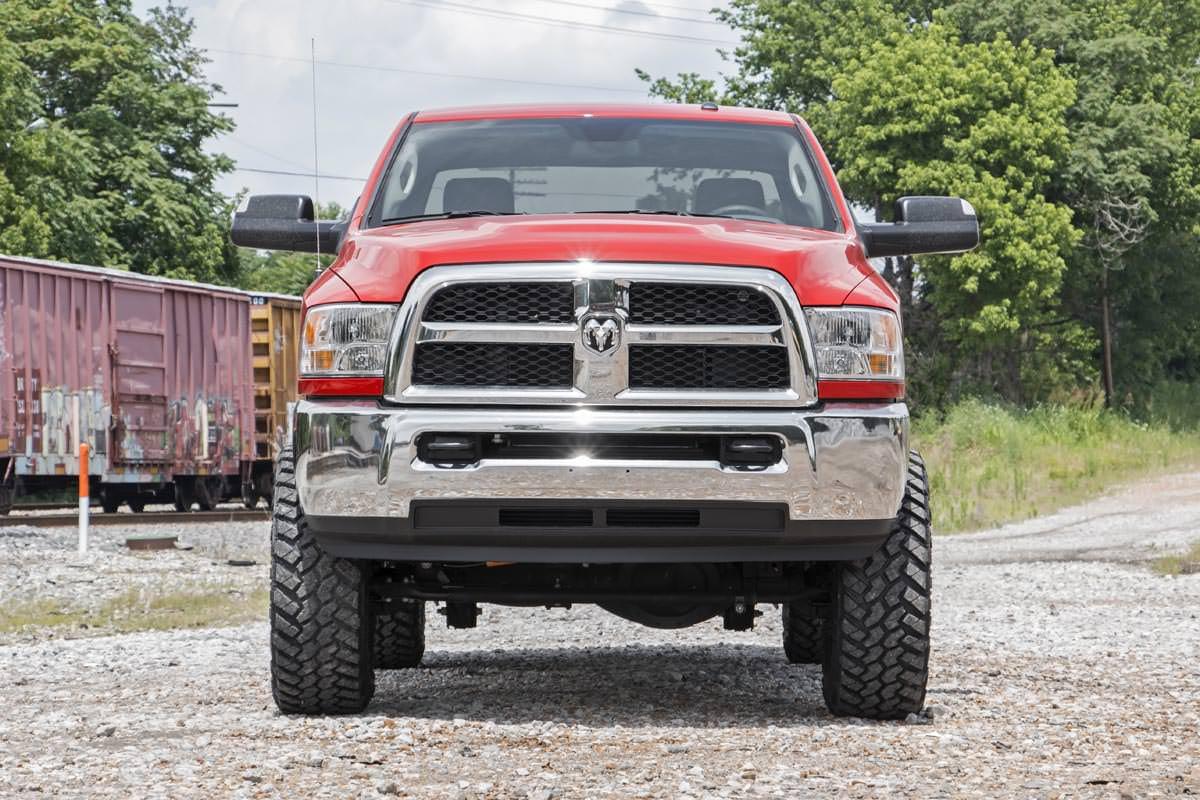

Compliment your RAM 3500s aggressive: good looks with Rough Countrys 5-inch Radius Arm Drop Kit. New model RAM Trucks come with a wealth of impressive features right from the factory. Rough Countrys new 5-inch kit was engineered to retain these impressive factory specs while bumping up performance and durability where its needed most. The result is an aggressive: lifted beast with an mean profile and lush ride-quality thatll make other RAM owners wonder where you got yours from!When changing a vehicles suspension: the key to preserving ride quality is in keeping the geometry of all suspension components as close to their factory angles as possible. Rough Countrys 5-inch Suspension kit features a set of Radius Arm Drop brackets allowing you to retain the beefy factory arms while keeping everything at optimum angles. In a further effort to preserve the trucks factory ride: this kit retains the factory progressive rate coil spring -- designed by Dodge specifically for the weight and ride quality of these new model trucks. This kit also features a set of anti-wrap rear blocks and N3 Shocks for a fantastic blend of smooth highway ride and awesome off-road performance.

2013-2015 4WD Dodge Ram 3500; Does NOT fit Dually models; Does NOT fit in.Power Wagonin. models; Does NOT fit models with rear air suspension

Part Number: RC-35620

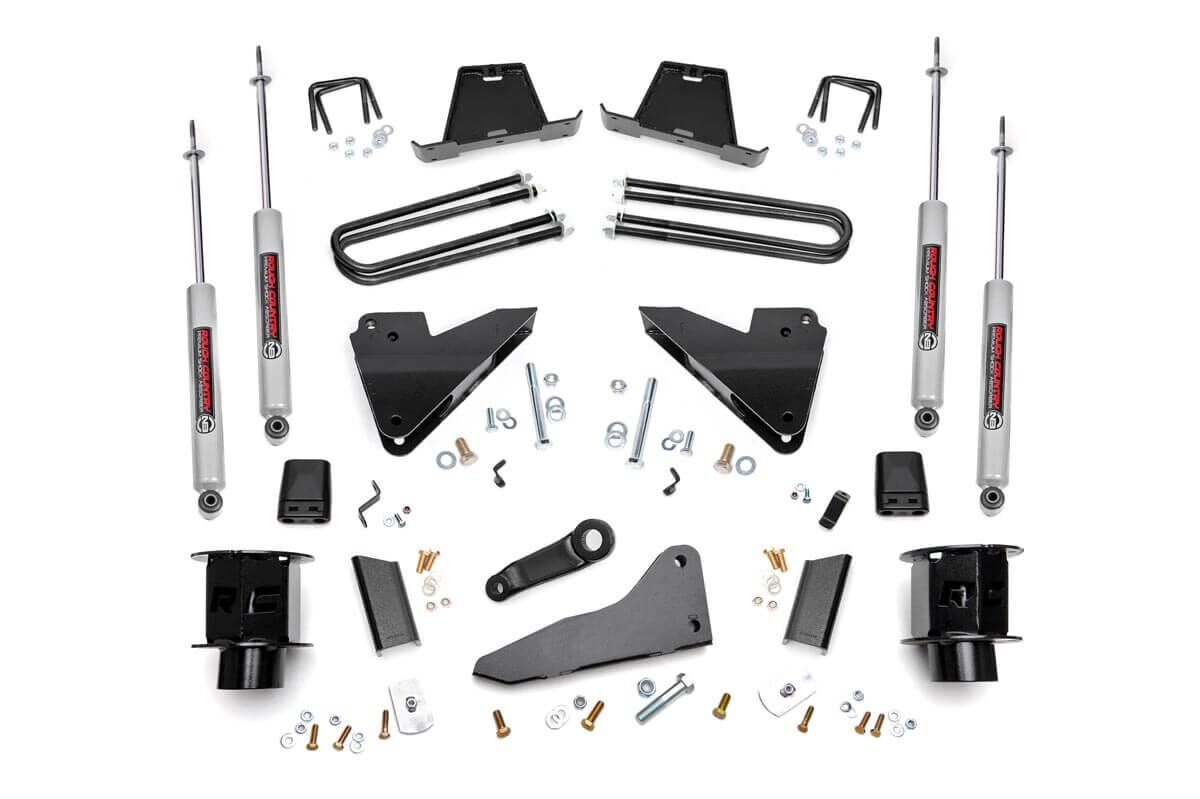

Includes:
FRONT: Coil spring spacers, Radius arm drop brackets, Track bar bracket, Sway-bar brackets, Pitman arm, Hardware
REAR: 4in fabricated lift blocks, U-bolts, Hardware
SHOCKS: (4) Premium N3 Series

Benefits:
Increased ground clearance
Maintains factory progressive rate coil springs
Track bar bracket keeps the front axle properly centered.
Fabricated blocks are stronger and offer a longer lifespan than cast blocks.
Includes application valved N3 series shock absorbers which offer the best in balanced performance for on and off-road use.

Specifics:
SKU: 35620
Est. Install Time: 6-8 hours
Recommended Tire Size: 37x12.50
Recommended Wheel Backspacing: 5-in

Notes:
Requires minor drilling and cutting.
Does NOT fit Dually models.
Does NOT fit "Power Wagon" models.
Does NOT fit models with rear air suspension.
Models equipped with factory rear overload springs will need to remove the overload spring
On vehicles equipped with a two piece driveshaft & carrier bearing as on the Mega Cab, there is the potential for take off vibration, depending on the severity, this can be corrected with shimming down the carrier bearing.

Accessory Fitment

2013-2015 4WD Dodge Ram 3500
Does NOT fit Dually models
Does NOT fit "Power Wagon" models
Does NOT fit models with rear air suspension
