Rough Country
5-inch Suspension Lift Kit


Item Unavailable

Product Details

Rough Country Logo

This 5-inch kit now includes our critically acclaimed N2.0 shocks! Our N2.0 shocks are custom tuned specifically for this application - meaning you get a shock designed specifically for the weight and maneuverability of your truck. Incorporating "Velocity Sensitive Valving" technology, these shocks utilize a 10-stage variable valving process that allows for a super smooth highway ride and outstanding control in rugged off road situations from the same shock, with no need for further adjustment.
Featuring a brand-new control arm solution, our new Dodge 2500 Control Arm Drop Bracket System improves driveline geometry. By utilizing a set of beefy drop brackets we`ve eliminated the steep mounting angle often seen on 5-inch and larger kits. By mounting your stock arms to the reduced angle provided by our Drop Bracket System, you`ll gain better ride quality and better caster angle for increased drivability. Rough Country`s 5-inch Suspension Lift Kit - 348.23

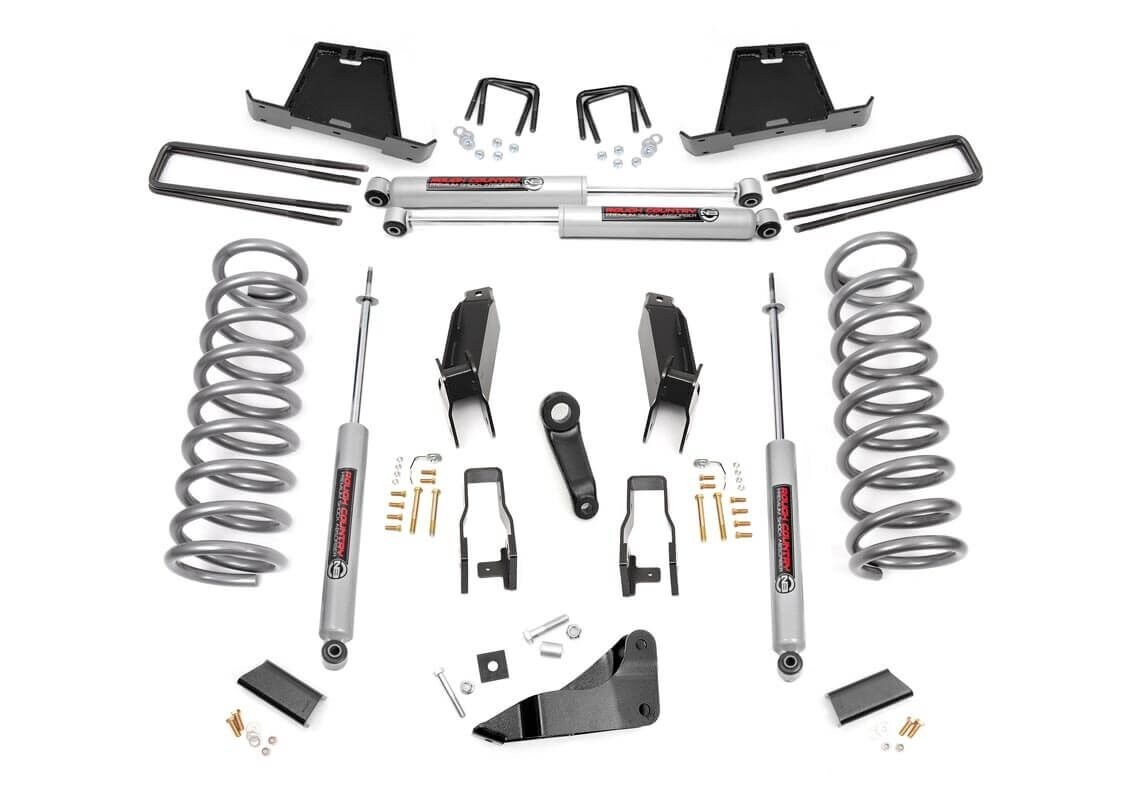

Kit Includes-
Front: Lifted coil springs, sway bar brackets, track bar relocation bracket, control arm drop brackets, pitman arm, and hardware
Rear: 4-inch fabricated lifted blocks, u-bolts, and emergency brake relocation bracket
Shocks: (4) Premium N2.0 Series

Part Number: RC-348.23

Includes:
Front: Lifted coil springs, sway bar brackets, track bar relocation bracket, control arm drop brackets, pitman arm, and hardware
Rear: 4-inch fabricated lifted blocks, u-bolts, and emergency brake relocation bracket
Shocks: (4) Premium N3 Shocks

Benefits:
Increased ground clearance
Maintains factory steering angles
Works with factory 17-inch and 20-inch wheels
Levels front of the vehicle with the rear
Control arm drop brackets reduce control arm angle, improving ride quality and driveability
Track bar bracket keeps the front axle properly centered
Features application valved N3 series shocks which offer the best in balanced performance for on and off-road use

Specifics:
Manufacturer: Rough Country Suspension Systems
Part Number: 348.23
Weight (Lbs): 180.2
Install Time (Hours): 4-6
Recommended Tire Size: 37-by-12.50

Notes:
Also fits all Mega Cab models
Fits Diesel engine models only
Requires minor drilling
On vehicles equipped with a two piece drive shaft and carrier bearing (as on the Mega Cab models) there is the potential for take off vibration - Depending on the severity, this can be corrected by shimming down the carrier bearing
Does not fit Dually models

Accessory Fitment

Ram: 11-13 2500 4WD, 11-12 3500 4WD
